Lode Ergometry Manager – LEM 10

Q: Upgradeability

Enduser upgradeable from LEM 9 can be upgrade by user from LEM 9.x

Versatile data and ergometer management
The Lode Ergometry Manager (LEM) is a software package used for controlling Lode ergometers and monitoring test subject ergometric parameters. The software enables the operator to program protocols, control ergometers, visualize, save and analyze ergometry data and print customized reports in PDF. Worldwide commonly used bicycle and treadmill protocols are standard preprogrammed. The program also provides a patient database and the possibility to connect to a SQL server or the Hospital Information System (HIS) with HL7. LEM 10 is also backwards compatible with previous versions, allowing you import and use your existing database easily. The software has been developed and tested according to the Lode principles of accuracy, durability and reliability. The Lode Ergometry Manager can be extended with various modules, each with its specific functions and visualizations. The Lode Ergometry Manager can be used for testing and training in several rehabilitation settings, sports medicine, physiotherapy and research environments.
Before upgrading to LEM 10 also make sure that your ergometer has the latest firmware installed. Your distributor can assist you
During the Ergometry Test (LEM 10)

Preparing the test (LEM 10)

After the test (LEM 10)

SKU: 18-Rehab Categories: Imaging, Rehabilitation, Sports Medicine

Overview

Highlights

Easy installation– Simple step by step installer

– Automatic detection of exercise devices

– Easy setup of subjects

Multifunctional software for Lode ergometersSoftware for all Lode ergometers, incl. options like BPM, HR, SpO2 etc. Worldwide commonly used bicycle and treadmill protocols are preprogrammed. Load, BPM and Borg notation triggers can be set remotely. Time trials can be implemented.

Complete Ergometry settingThe modular structure of the software combined with the accurate and reliable Lode ergometers offers a complete and modern ergometry setting.

Complete controlEasy set up of Subject data with photo

Create protocols quickly and efficiently

Overview of progress during test

Customized pdf reports

Additional functionality available in ModulesFunctionality of the software can be enhanced using the modules, like Wingate sprint tests, Åstrand sub maximal tests and the possibility to program protocols with multiple decisions targets and formulas.

Features

Patient Database

An extensive patient database is available, which can work as a stand alone database or linked to a SQL server. HL7 connection to the Hospital Information System (HIS) is possible.

Isokinetic

Isokinetic mode Excalibur and Brachumera

Isokinetic stages can be programmed for the Excalibur and Brachumera.

Visualisation of seating position Excalibur Sport

The seating position for the Excalibur Sport can be saved and compared with the actual or former positions

Sophisticated analysis menu

Possibility to zoom into the results and synchronize with other graphs. To have a better look with the use of the x/y coordinate functionality. Compare several test results from a Test subject in a clear overview, or compare different test subject performing the same exercise test. Define your own print report.

Customizable dashboard

The dashboard on the monitor can be customized and saved for several applications. Test views and Analysis can easily be adjusted, completed and saved.

User friendly protocol templates

Protocol templates for creating standard protocols for the bicycle and treadmill ergometers are available. An efficient manner to define the amount, duration and type of stages, in interval- step- or bodyweight controlled- protocols. Adjusting those protocols can be done at any time.

Advanced protocol editor

Exercise Protocols with target energy and target distance stages are created with the protocol editor. Special body weight depended stages, linear stages, ramping stages or Heart rate controlled protocols are easily programmed and customized. Default protocols are available.

Backwards compatible with previous LEM versions

LEM 10 is compatible with LEM 6, 7, 8 and 9. This means that the database of these versions can be imported and used in LEM 10.

Specifications

User Interface

English user interface			User interface available in English language
Norwegian user interface			User interface available in Norwegian language
Czech user interface			User interface available in Czech language
Dutch user interface			User interface available in Dutch language
Finnish user interface			User interface available in Finnish language
French user interface			User interface available in French language
German user interface			User interface available in German language
Japanese user interface			User interface available in language
Korean user interface			User interface available in Korean language
Polish user interface			User interface available in Polish language
Russian user interface			User interface available in Russian language
Spanish user interface			User interface available in Spanish language

Minimum System Requirements

Intel Core based processor	2.4 GHz	processor family
Monitor	1920 x 1080 pixels	Resolution
Internal RAM	4000 MB	minimum PC internal memory
Minimum Free Hard Disk space	20 GB	software and storage size requirement
CD Rom drive required		installation medium input
Number of free USB ports	1	for connection purposes
Mouse		for input
Keyboard		for input

Compatibility

HL7 compatible		HL7 compatible
Compatible with MS SQL Server		Can be connected with MS SQL Server
Database	SQLite	Database used
Database limit	140000 GB	Database limit when used as local database
Microsoft Windows 10		compatible with Microsoft Windows 10
Microsoft Windows 8		compatible with Microsoft Windows 8
Microsoft Windows 7		compatible with Microsoft Windows 7

Upgradeability

Enduser upgradeable from LEM 9

can be upgrade by user from LEM 9.x

Preprogrammed protocols

25 Watt / minute			25 Watt / minute Bicycle protocol
Balke			Balke Treadmill protocol
Balke modified			Balke modified Treadmill protocol
Bruce			Bruce Treadmill Protocol
Bruce (Mod)			Bruce (Mod) Treadmill protocol
Bruce (pediatric)			Bruce (pediatric) Treadmill Protocol
Chung			Chung Treadmill protocol
Chung (Low Level)			Chung (LL) Treadmill protocol
Claudicationet			Claudicationet Treadmill protocol
Ellestad			Ellestad Treadmill protocol
Naughton			Naughton Treadmill protocol
Body Weight Controlled			Body Weight Controlled Bicycle protocol
Weight dependent protocol			Weight Dependent Bicycle protocol
Isokinetic			Isokinetic Bicycle protocol
Target Distance			Target Distance Bicycle protocol
Target Energy			Target Energy Bicycle protocol

*Specifications are subject to change without notice.

Accessories

[wcsp_cross_sell orderby=”rand” order=”ASC” product_num=”5″ display_columns=”3″ title=”” product_id=”5919″]

Science

Significant Molecular and Systemic Adaptations after Repeated Sprint Training in Hypoxia

Significant Molecular and Systemic Adaptations after Repeated Sprint Training in Hypoxia

Author(s)

Faiss R1, Léger B, Vesin JM, Fournier PE, Eggel Y, Dériaz O, Millet GP.

Date

2013-02-20

Source

PLoS One. 2013;8(2):e56522. Epub 2013 Feb 20.

While intermittent hypoxic training (IHT) has been reported to evoke cellular responses via hypoxia inducible factors (HIFs) but without substantial performance benefits in endurance athletes, we hypothesized that repeated sprint training in hypoxia could enhance repeated sprint ability (RSA) performed in normoxia via improved glycolysis and O(2) utilization. 40 trained subjects completed 8 cycling repeated sprint sessions in hypoxia (RSH, 3000 m) or normoxia (RSN, 485 m). Before (Pre-) and after (Post-) training, muscular levels of selected mRNAs were analyzed from resting muscle biopsies and RSA tested until exhaustion (10-s sprint, work-to-rest ratio 1:2) with muscle perfusion assessed by near-infrared spectroscopy. From Pre- to Post-, the average power output of all sprints in RSA was increased (p<0.01) to the same extent (6% vs 7%, NS) in RSH and in RSN but the number of sprints to exhaustion was increased in RSH (9.4±4.8 vs. 13.0±6.2 sprints, p<0.01) but not in RSN (9.3±4.2 vs. 8.9±3.5). mRNA concentrations of HIF-1α (+55%), carbonic anhydrase III (+35%) and monocarboxylate transporter-4 (+20%) were augmented (p<0.05) whereas mitochondrial transcription factor A (-40%), peroxisome proliferator-activated receptor gamma coactivator 1α (-23%) and monocarboxylate transporter-1 (-36%) were decreased (p<0.01) in RSH only. Besides, the changes in total hemoglobin variations (Δ[tHb]) during sprints throughout RSA test increased to a greater extent (p<0.01) in RSH. Our findings show larger improvement in repeated sprint performance in RSH than in RSN with significant molecular adaptations and larger blood perfusion variations in active muscles.

Download publication
The steep ramp test in healthy children and adolescents: reliability and validity.

The steep ramp test in healthy children and adolescents: reliability and validity.

Author(s)

Bart C. Bongers, Sanne de Vries, Paul J.M. Helders and Tim Takken

Date

2013-02-24

Source

Medicine and Science in Sports and Exercise

Abstract
PURPOSE:

This study aimed to examine the reliability and validity of the steep ramp test (SRT), a feasible, maximal exercise test on a cycle ergometer that does not require the use of respiratory gas analysis, in healthy children and adolescents.
METHODS:

Seventy-five children were randomly divided in a reliability group (n = 37, 17 boys and 20 girls; mean ± SD age = 13.86 ± 3.22 yr), which performed two SRTs within 2 wk, and a validity group (n = 38, 17 boys and 21 girls; mean ± SD age = 13.85 ± 3.20 yr), which performed both an SRT and a regular cardiopulmonary exercise test (CPET) with respiratory gas analysis within 2 wk. Peak work rate (WRpeak) was the main outcome of the SRT. Peak oxygen uptake (VO2peak) was the main outcome of the CPET. Reliability was examined with the intraclass correlation coefficient and a Bland and Altman plot, whereas validity was assessed using Pearson correlation coefficients and stepwise linear regression analysis.
RESULTS:

Reliability statistics for the WRpeak values attained at the two SRTs showed an intraclass correlation coefficient of 0.986 (P < 0.001). The average difference between the two SRTs was -6.4 W, with limits of agreement between +24.5 and -37.5 W. A high correlation between WRpeak attained at the SRT and the V?O2peak achieved during the CPET was found (r = 0.958; P < 0.001). Stepwise linear regression analysis provided the following prediction equation: VO2peak (mL·min) = (8.262 WRpeak SRT) + 177.096 (R2 = 0.917, SEE = 237.4).
CONCLUSION:

The results suggest that the SRT is a reliable and valid exercise test in healthy children and adolescents, which can be used to predict VO2peak.

Download publication
Validity and Reliability of Skill-Related Fitness Tests for Wheelchair-Using Youth With Spina Bifida.

Validity and Reliability of Skill-Related Fitness Tests for Wheelchair-Using Youth With Spina Bifida.

Author(s)

Manon A. Bloemen, MSc; Tim Takken, PhD; Frank J. Backx, PhD; Marleen Vos, MSc; Cas L. Kruitwagen, MSc; Janke F. de Groot, PhD

Date

2017-06-01

Source

Archives of Physical Medicine and Rehabilitation 2017;98:1097-103

Abstract
Objectives: To determine content validity of the Muscle Power Sprint Test (MPST), and construct validity and reliability of the MPST, 105
Meter Sprint Test (105MST), slalom test, and One Stroke Push Test (1SPT) in wheelchair-using youth with spina bifida (SB).
Design: Clinimetric study.
Setting: Rehabilitation centers, SB outpatient services, and private practices.
Participants: A convenience sample of children and adolescents (NZ53; 32 boys, 21 girls; age range, 5e19y) with SB who use a manual
wheelchair. Participants were recruited through rehabilitation centers, SB outpatient services, pediatric physical therapists, and the BOSK
(Association of Physically Disabled Persons and their Parents).
Interventions: Not applicable.
Main Outcome Measures: Construct validity of the MPST was determined by comparing results with the arm-cranking Wingate Anaerobic Test
(WAnT) using paired t tests and Pearson correlation coefficients, while content validity was assessed using time-based criteria for anaerobic
testing. Construct validity of the 105MST, slalom test, and 1SPT was analyzed by hypothesis testing using Pearson correlation coefficients and
multiple regression. For reliability, intraclass correlation coefficients (ICCs) and smallest detectable changes (SDCs) were calculated.
Results: For the MPST, the mean SD exercise time of 4 sprints was 28.16.6 seconds. Correlations between the MPSTand arm-crankingWAnT
were high (r>.72, P<.01). Excellent correlations were found between the 105MSTand slalom test (rZ.93, P<.01), while correlations between the
105MSTor slalom test and MPSTand 1SPTwere moderate (rZ.56 to.70; rZ.56, P<.01). The variation of the 1SPTwas explained for 38% by
wheelchair mass (bZ.489) and total upper muscle strength (bZ.420). All ICCs were excellent (ICCs>.95), but the SDCs varied widely.
Conclusions: The MPST is a valid and reliable test in wheelchair-using youth with SB for measuring anaerobic performance. The 105MST and
slalom test are valid and reliable for measuring agility. For the 1SPT, both validity and reliability are questionable.

Download publication

Support

Q - Is it possible to control the Lode ergometers and treadmills with external equipment

Yes, you can find interface sheets for most common devices on the website at the "service" tab of this website. If your device is not present you can ask us to support you. In most cases we can quickly provide you with a solution.

Q - Why should I upgrade from LEM 8 to LEM 9?

Version 9 of the LEM software added the following list of new features and improvements in comparison to version 8

Main adaptations and features
Software installation has made easy through a single installation CD, upgrades can be activated by just ordering the additional license that will be provided to you by E-mail.
Target Distance and Energy is implemented as a protocol stage. A target distance or energy level can be defined for each test subject to perform during the test.
Support for PWC (Physical Work Capacity) protocols. The Physical Work Capacity protocol can be used for different custom defined target heart rates. When the selected heart rate is reached the protocol will go to the recovery stage.
Heart rate controlled protocol stage for treadmills are possible now when the treadmill is equipped with the heart rate option
A new start tool for the Module Wingate plus is developed. It is possible now to define a pedal frequency (rpm) to start the wingate sprint test when this rpm is reached. When a test subject is speeding up during the count down phase this feature can be used.
In stead of programming body weight protocols for every separate body weight it is possible now to create body weight controlled bicycle protocol steps, as a percentage of the body weight. These protocols can be used for test subjects with a different body weight.
The new Protocol wizard will help to create protocols simply and quick. Normal Step, interval and bodyweight controlled (only bicycle) protocols can be created for the ergometers and treadmills
Protocols can be stored in folders, a menu structure for each purpose or group of test subjects can be created
The well known protocol developed by the World Health Organization is standard included in LEM as WHO protocol, 25 Watt/min
To adjust the workload or speed/slope manually during the exercise test it is possible now to enter the desired value in addition to up/down arrow buttons.
In the Test subject database a new field is created for the fat percentage. This data can be used by the LEM Astrand module in the Astrand statistics
The ergometer tree in the application is constructed directly from the license file
A new visualization is implemented: METS the metabolic equivalent for the resting metabolic rate
A demo mode can be found standard in the LEM database: a test from the database is used as data source for a new test. This enables LEM demonstrations without use of an ergometer.
In addition to the step time the new time to next stage counter is shown in the numeric bar.
The German translation of the LEM software is available now

Further smaller enhancements
In addition to the relative steps of the user defined protocols the Protocol Editor is enhanced: The user can now enter absolute load/speed/slope
When the SPO2 option is used for the heart rate results in LEM the Graphs of measurement series will be interrupted if SPO2 or heart rate data is missing. In earlier versions of LEM the graph show vertical lines each time the data was missing.
Thickness of lines in printed graphs has been increased.
The logical order of buttons in toolbar (next stage, previous stage, go to recovery, ...) has been improved.

Other changes
A pause of a test now pauses protocol execution while data acquisition continues.
Minimum duration of Wingate test reduced to 3 seconds. The original Wingate protocol is defining a sprint stage of 30 seconds. For research however it is necessary to be able to define very small sprint durations
Improved interface for editing remarks in analysis

Q - Why should I upgrade from LEM 7 to LEM 8?

Upgrading from Lode Ergometry manager 7 to 8 delivers you the following improvements

New Adaptations and Features
Support for SQL Server (express) 2005 for data storage. Storage in a local access file is still supported (and is the default).
Distance visualization for treadmills is implemented.

Further smaller enhancements
Software is now compatible with OS Microsoft Windows 7
Higher performance importing test. More tests can be imported in less time
The LEM software supports all Cycle ergometer that can be set to the Lode 38k4 RS232 protocol and Lode treadmill.
The ergometers are devided into two classes , Bicycle and treadmill ergometers

Other changes
Test-Files are stored in a database in the application data directory to reduce errors and make it possible to work with multiple users on the same database.
Format for exporting and back upping files has been changed to zipped XML files.

Q - Why should I upgrade from LEM 6 to LEM 7?

Upgrading from Lode Ergometry manager 6 to 7 delivers you the following added functionality

New Features
Added treadmill control to LEM. From this software version on it is possible to control the Lode treadmills with LEM.
The LEM Multi Bike control Module is now called Multi Control, Bicycle ergometers and treadmill ergometers can be used in the same environment at the same time. This is a good feature for a.o. rehabilitation.

Q - What are the differences between version 9.3 and 9.4 of LEM

Added:
- A new Questionnaire module is now available, a seperate licence is needed
- Syntax check and error message for Architect formula's is now available
- Warmup stage: works like step stage and can only be used as first stage in the protocol.

Adaptations:
- Protocol dialog has been converted to a model dialog, so it's clear to the user when the protocol is saved (ie. when the OK button in de model dialog is pressed)
- When a new stage is added to a protocol, the result will be visible immediatly. Instead of adding an invisible stage ('None' type), a stage of the same type of the selected stage will be added.
- Move login/logout functionality from Tools menu to menu bar itself
- Start Button changes into Pause/Resume button while a test is running, instead of Stop
button.
- Menu items whose functionality is available elsewhere have been removed.
- Order of (left) quick choice menu has been changed
- LEM Layout is automatically stored when the application is closed, and reloaded when it
is started again.

Improvements
- PFM test visualizations did not show the correct angle range when opened while test was already running. Usually the last 2 (or 10) complexes are shown, but this increased to the number of complexes depending on how long the test has been running at the moment the visualization was openened.
- Incorrect start time in PFM export (to xls/ascii) when data from first angle of complex was missing.

Q - What are the changes in LEM Version 9.4.5 compared to the previous version 9.4.4?

The permitted range of Astrand protocol parameters is extended
Color coded text showing success/failure of ergometer/pfm connection attempt makes more sense: Red: No connection, Green: connection OK
Increased update frequency of PFM graphs from 1Hz to 10Hz to improve readability
Changed unit of 'Total Work' in wingate statistics from J to KJ, Export still uses Joule, because changing the unit there may break automated processing of the excel file.

Q - Why should I upgrade from LEM V9 to LEM V10

LEM 10 has been redesigned from the ground up.
A complete redesign of the workflow makes your activities more efficient
Automatic detection of connected devices allows for easy connection and detection.

For Excalibur:
- visualisation of saddle and handlebar adjustment.

For PFM (Pedal Force Measurement):
- new visualisation of PFM data in a polar diagram (Force, Torque, Load) for single, combined and added sides.
- easy zoom in on Area's of Interest
- easy link to other data
- easy zeroing with feedback.

For Wingate
- OPTION TO COMPARE WINGATE RESULTS 6-8-9-20
- PP5

Q - Can I use a RS232 to USB converter to connect an ergometer?

Yes you can. Make sure the chipset used in the converter is from FTDI to have good data acquisition.
Not sure what this means? Contact us and we will help you to get the right converter.

Q - What should I check prior to upgrading to LEM10?

It is important to update the firmware of your existing ergometer to the latest version. This guarantees correct communication between the software and your product and the most optimal userexperience.

Also check if your Windows version is 7 or higher.

Q - How to copy previous LEM10 database and settings to a new computer

A: Secure the files of the old PC

Open an explorer window on the OLD PC

Type %localappdata%LodeLode Ergometry Manager 10 in the searchbox

Copy the following files to a USB memory stick or a network directory

Lem.db
Config.xml
Licences.pdf

B: Install LEM 10 on the NEW PC

Install LEM10 on the NEW PC

Close LEM10 on the new PC

After installation is complete

C: Place the files from the OLD PC on the NEW PC

Open an explorer window on the NEW PC

Type %localappdata%LodeLode Ergometry Manager 10 in the searchbox

Copy the three files from the USB memory stick in that directory

Start LEM and it should look like it was on the old PC.

Service

Part number 955900

Reviews

There are no reviews yet.

Be the first to review “Lode Ergometry Manager – LEM 10”

Lode Ergometry Manager – LEM 10

Lode Ergometry Manager – LEM 10

Overview

Highlights

Easy installation

Multifunctional software for Lode ergometers

Complete Ergometry setting

Complete control

Additional functionality available in Modules

Features

Patient Database

Isokinetic mode Excalibur and Brachumera

Visualisation of seating position Excalibur Sport

Sophisticated analysis menu

Customizable dashboard

User friendly protocol templates

Advanced protocol editor

Backwards compatible with previous LEM versions

Specifications

*Specifications are subject to change without notice.

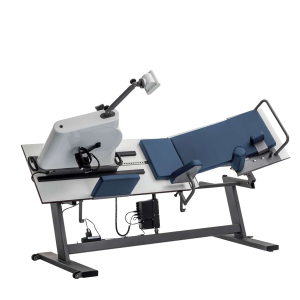

Angio Rehab – Eith Electrical Adjustable Wall Fixation

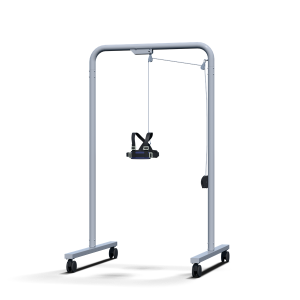

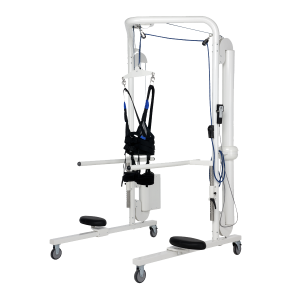

Body Weight Support System

Lode Cardiac Rehab Manager

Valiant 2 Rehab XL

Accessories

Science

Science

Support

Version 9 of the LEM software added the following list of new features and improvements in comparison to version 8

Upgrading from Lode Ergometry manager 7 to 8 delivers you the following improvements

Service

Reviews

Cart

Lode Ergometry Manager – LEM 10

Lode Ergometry Manager – LEM 10

Overview

Highlights

Easy installation

Multifunctional software for Lode ergometers

Complete Ergometry setting

Complete control

Additional functionality available in Modules

Features

Patient Database

Isokinetic mode Excalibur and Brachumera

Visualisation of seating position Excalibur Sport

Sophisticated analysis menu

Customizable dashboard

User friendly protocol templates

Advanced protocol editor

Backwards compatible with previous LEM versions

Specifications

*Specifications are subject to change without notice.

Related Products

Angio Rehab – Eith Electrical Adjustable Wall Fixation

Body Weight Support System

Lode Cardiac Rehab Manager

Valiant 2 Rehab XL

Accessories

Science

Science

Support

Version 9 of the LEM software added the following list of new features and improvements in comparison to version 8

Upgrading from Lode Ergometry manager 7 to 8 delivers you the following improvements

Service

Reviews

Related products

MR Ergometer Pedal Ultra

MR Ergometer Up/Down

Lode Rehab Manager

Lode Research Data Logger
