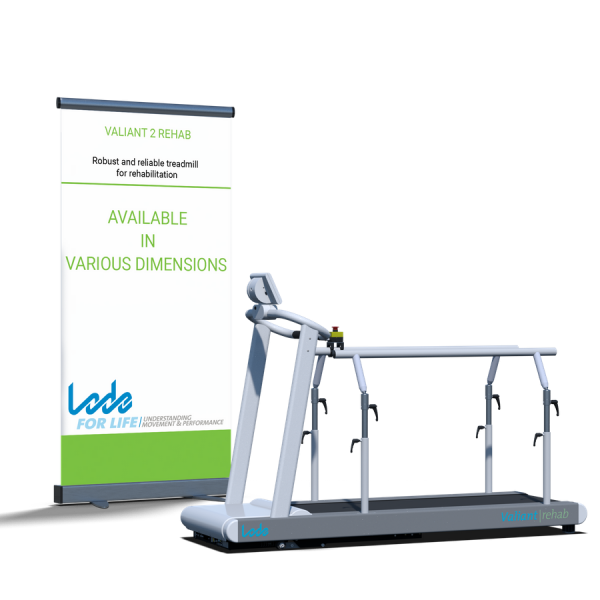

Valiant 2 Rehab
Robust and reliable treadmill for rehabilitation
Modern designed treadmill specifically designed for rehabilitation. The low step-up height makes the treadmill perfectly suitable for all test subjects in the field of rehabilitation. The emergency stop with magnetic lanyard on the standard front handrail provides additional safety for the user. The Valiant 2 rehab offers a smooth acceleration from 0 km/h and is continuously adjustable in a range of 0,1 – 12 km/h (0.06 – 7.5 mph). The included network module provides control within a Lode software network (LEM, LRM or LCRM). Thanks to the unique low design of the cover plate it is possible to place a mirror or camera in front of the treadmill which makes it easier to monitor the gait of the test subject. The Valiant 2 rehab has a standard running surface of 50 x 150 cm and 0-25% elevation. The treadmill is equipped with a 7″ control unit with Touchscreen for manual control.
A USB A-B cable only for service purposes will be standard delivered with the product.
To connect LEM, LRM or LCRM you need a special interface cable that can be ordered under part number 930930.
During the Ergometry Test (LEM 10)
Overview
Highlights
Smooth acceleration
Patient friendly treadmill
– low step-up height
– faultless operation
– smooth acceleration
– reliable and reproducible test results
– low noise
Extremely accurate
Various handrails available
High standards
Features

Low noise

Extreme low step-up height

USB connectivity

RS232 connectivity

Optional integrated BPM and SpO2

Low cover plate

Robust design

Downhill walking as an option (-25%)
Specifications
| Maximum speed | 12 km/h | 7.5 mph | maximum speed of the treadmill |
| Minimum operational speed | 0.1 km/h | 0.1 mph | minimum speed of the treadmill |
| Speed adjustment steps | 0.1 km/h | 0.1 mph | the steps you can adjust the speed with |
| Positive elevation | 25 % | maximum positive angle as a percentage | |
| Elevation adjustment steps | 0.5 % | the size of the steps you can adjust the elevation | |
| Optional negative elevation | -10 % | mimimum negative angle percentage that can be reached with the optional accessory |
| Speed accuracy | 5 % | accuracy of speed | |
| Accuracy inclination | 0,5 % | Accuray of the inclination |
| Allowed user weight | 225 kg | 496 lbs | maximum patient weight |
| English user interface | User interface available in English language | ||
| Norwegian user interface | User interface available in Norwegian language | ||
| Czech user interface | User interface available in Czech language | ||
| Danish user interface | User interface available in Danishlanguage | ||
| Dutch user interface | User interface available in Dutch language | ||
| Finnish user interface | User interface available in Finnish language | ||
| French user interface | User interface available in French language | ||
| German user interface | User interface available in German language | ||
| Italian user interface | User interface available in Italian language | ||
| Japanese user interface | User interface available in language | ||
| Korean user interface | User interface available in Korean language | ||
| Polish user interface | User interface available in Polish language | ||
| Portugese user interface | User interface available in Portugese language | ||
| Russian user interface | User interface available in Russian language | ||
| Spanish user interface | User interface available in Spanish language | ||
| Turkish user interface | User interface available in Turkish language | ||
| Ukrainian user interface | User interface available in Ukrainian language |
| Optional USB connector | connection via USB possible | ||
| Optional RS232 connector | optional connection via RS232 |
| Screen resolution | 800 x 400 pixels | Screen resolution | |
| Walking surface length | 150 cm | 59.1 inch | length of the walking surface |
| Walking surface width | 50 cm | 19.7 inch | width of the walking surface |
| Step up height | 17 cm | 6.7 inch | height to step up the treadmill |
| Product length (cm) | 213 cm | 83.9 inch | length of product in cm |
| Product width (cm) | 76 cm | 29.9 inch | width of the product in cm |
| Product height (excl. control unit) | 132 cm | 52 inch | height of the product without Control Unit |
| Product height (incl. 7" control unit) | 150 cm | 59.1 inch | height of the product including 7 inch Control Unit |
| Product weight | 149 kg | 328.5 lbs | the weight of the product |
| Power cord length | 250 cm | 98.4 inch | length of powercord including plugs |
| Power cord IEC 60320 C19 with CEE 7/7 plug | European power cord and connector standard supplied with product | ||
| Power cord NEMA | NEMA power cord and connector | ||
| Maximum rated power input | 2500 VA | power input | |
| 115 V AC 50/60 Hz (2 phases) | when <230V, the treadmill should be connected between two phases | ||
| 230 V AC 50/60 Hz | operational power | ||
| Maximum motor power | 1.8 kW | the maximum power the motor will consume |
| IEC 60601-1:2005 | the product is IEC 60601-1 3rd edition compliant | ||
| ISO 13485:2016 compliant | Lode fulfils ISO 13485:2016 requirements | ||
| ISO 9001:2015 compliant | Lode fulfills ISO 9001: 2015 requirements | ||
| Standard emergency lanyard | an emergency stop with a magnetic lanyard is present |
| CE class Im according to MDD93/42/EEC | CE certified | ||
| CE class of product with optional SpO2 | IIa | CE class of product with optional SpO2 | |
| CE class of product with optional BPM | IIa | CE class of product with optional Blood Pressure Measurement | |
| CB according to IECEE CB | CB certified |
| Maximum operational temperature | 40 °C | maximum temperature at which the device will work within specification | |
| Minimum operational temperature | 14 °C | minimum temperature at which the device will work within specification | |
| Maximum operational air pressure | 106 kPa | maximum air pressure as from which the product will be operating within specification | |
| Minimum operational air pressure | 70 kPa | minimum airpressure as from which the product will be operating within specification | |
| Maximum operational non-condensing humidity | 90 % | maximum non-condensing humidity at which the product will operate within specification | |
| Minimum operational non-condensing humidity | 30 % | minimum non-condensing humidity at which the product will operate within specification | |
| Maximum storage & transport temperature | 70 °C | maximum temperature the product may be stored or transported at | |
| Minimum storage & transport temperature | -25 °C | minimum temperature the product may be stored and transported at | |
| Maximum storage & transport air pressure | 106 kPa | maximum air pressure the product may be stored and transported at | |
| Minimum air pressure storage & transport | 50 kPa | minimum air pressure the product may be stored or transported at | |
| Max. humidity storage & transport | 95 % | max. non-condensing humidity that the product can be stored or transported at | |
| Min. humidity storage & transport | 10 % | minimum non-condensing humidity that the product can be stored or transport at |
*Specifications are subject to change without notice.
