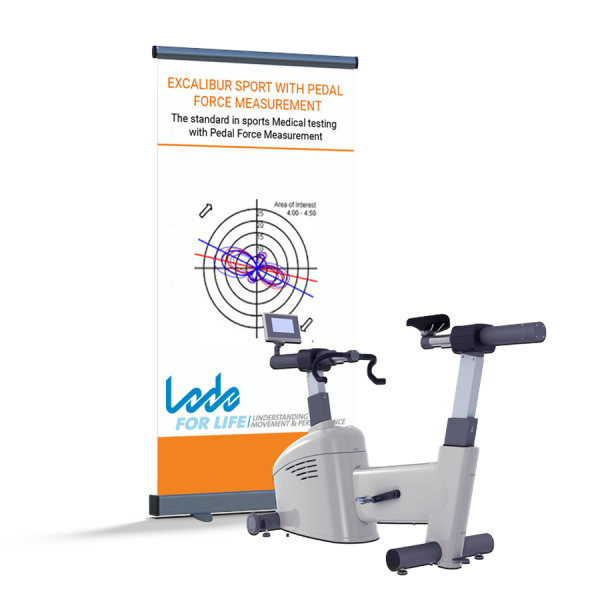

The New Excalibur Sport With Pedal Force Measurement

The New Excalibur Sport With Pedal Force Measurement

Smarter, Better, Stronger!

With its unbeatable accuracy and reliability, the Excalibur Sport has proven itself as The Gold Standard in Ergometry ever since 1985. However, the world keeps spinning and developments never stop. That is why we now proudly present the new Lode Excalibur Sport: Smarter, Better and Stronger! Still true to its heritage but combined with innovative new features to meet the latest and future requirements of modern sports medicine and research to allow athletes to become stronger and better with smarter use of human performance technology.

Versatile ergometerThe new Lode Excalibur Sport ergometer is an essential part of a sports medicine or research lab, since it can be used to test all types of athletes. The ergometer allows for various tests, like a Wingate sprint test, Isokinetic tests, High Intensity Tests (HIT) and time trials. Moreover, it can also be used for CPET testing and bike fitting.

Pedal Force Measurement
This Excalibur sport has built-in modified strain gauge technology that measures forces exerted on the pedals during exercise and is supplied with angle detection. Independent measurements of forces in both left and right crank are possible. Wireless transmission of the measured forces to the PC by blue tooth. Note: this setting is supplied with LEM and LEM PFM software (various other modules are available), a computer (we recommend to use this PC only for the LEM software) and an interface cable.

SKU: 02 Category:

Overview

Highlights

Extreme workload range of 10 – 3000 watt

This extraordinary peak workload is extremely suitable for sports medicine and testing the strongest athletes on their anaerobic power or isokinetic capacity. Combined with the low start workload of 10 Watt this Excalibur will fit everybody.

Left and right independent measurements

The PFM is not only the summation of left and right, but real left and right independent measurements. Differences between the left and right pedal movement, before and after surgery or at different workload can be detected. A real diagnostic tool!

Measurement every 2 degrees

The accuracy of the PFM during the total revolution is obtained by the placement of highly specific strain gauges in the crank axis making it possible to measure the pedal force every 2 degrees during each revolution during the exercise test.

Special Analysis and Polar Graphs

Analysis and Polar graphs are specifically designed for pedal force measurement

LEM PFM included

The LEM software with PFM module is standard included

Features

Electric adjustable saddle Excalibur Sport

The position of the saddle of the excalibur sport can be adjusted in height, length and angle to suit all users.

The saddle of the ergometer can be adjusted horizontally in a range of 252 mm and the saddle height in a range of 388 mm using the Control Unit or LEM.

The Test Subject can be seated on the saddle while adjusting.

Electric adjustable handlebar Excalibur Sport

The position of the handlebar of Excalibur Sport is completely adjustable in height and length.

The handlebar of the ergometer can be adjusted horizontally in a range of 169mm and vertically in a range of 390mm using the Control Unit or LEM software. The Test Subject can use the handlebar while adjusting.

Extreme low start up load 10W

The extreme low start-up load of 10 watts and the adjustability in small steps of 1 watt make this ergometer perfectly suitable for many different applications. The standard control unit shows multiple ergometry parameters and you can determine your specific default setting and start-up menu.

Low noise

Due to accurate manufacturing and the careful choice of materials the product has an extremely low noise level.

Accurate over a long period of time

The Lode ergometers are supplied with an electro-magnetic braking mechanism of Lanooy (eddy current). The biggest advantage of this braking system compared to a friction braking system is the absolute accuracy and the accuracy over time. Moreover, friction braking systems have more wearing parts.

Compatible with ECG and pulmonary devices

The Lode ergometers have digital interfaces and can be controlled easily by all known stress ECG and pulmonary devices available in the world. This is one of the reasons why the Lode ergometers are very popular worldwide.

Exchangeable pedals

The cranks of the ergometer are suitable for almost all available clip systems so cyclists can perform a test with their own favorite pedals.

Designed to be sweat-proof

The housing of the ergometer is designed in such way that sweat does not have the chance to drip into the mechanical parts and cables are protected. This ensures a long lifetime and makes the ergometer insensitive for malfunction.

RS232 connectivity

RS232 ports enable connectivity to most ECG and ergospirometry devices as well as PC’s.

LEM compatible

This product can be used with Lode Ergometry Manager (LEM) software to manage data and to apply specific protocols when a Communication card or Network card is present

Specifications

Workload
Minimum load 10 W the minimum load the ergometer can provide
Maximum peak load 3000 W the maximum load the ergometer can provide for a short period of time
Isokinetic workload control
control ergometer in isokinetic way
Minimum load increments 1 W the smallest steps with which the load can be added
Hyperbolic workload control
control of workload in hyperbolic way
Linear workload control
control ergometer in a linear way
Fixed torque workload control
control ergometer in a fixed torque way
Maximum rpm independent constant load 180 rpm rpm as to which constant load can be applied
Minimum rpm independent constant load 30 rpm rpm as from which constant load can be applied
Electromagnetic "eddy current" braking system
system that very accurately applies a brake to the ergometer
Accuracy
Workload accuracy below 100 W 2 W accuracy of the ergometer below 100 Watt load
Workload accuracy from 100 to 1500 W 2 % accuracy of the ergometer between 100 and 1500 Watt
Workload accuracy over 1500 W 5 % accuracy of the ergometer over 1500 Watt
Comfort

Toeclips on pedals

fixation of the feet on pedals to enable optimal force transitionQ-factor147 mmQ-factorVertical seat adjustment maximum938 mm36.9 inchseat adjustment maximum height from crank axis to seat topVertical seat adjustment minimum550 mm21.7 inchseat adjustment minimum height from crank axis to seat topHorizontal seat adjustment minimum72 mm2.8 inchhorizontal seat adjustment minimum distance from crank axis to seat midpointHorizontal seat adjustment maximum324 mm12.8 inchhorizontal seat adjustment maximum distance from crank axis to seat midpointAllowed user weight225 kg496 lbsmaximum patient weightHorizontal handlebar adjustment minimum229 mm9 inchhorizontal handlebar adjustment minimum distance from crank axis to center of handlebar mounting pointHorizontal handlebar adjustment maximum60 mm2.4 inchhorizontal handlebar adjustment maximum distance from crank axis to center of handlebar mounting pointVertical handlebar adjustment minimum465 mm18.3 inchvertical handlebar adjustment minimum distance from crank axis to center of handlebar mounting pointVertical handlebar adjustment maximum855 mm33.7 inchvertical handlebar adjustment maximum distance from crank axis to center of handlebar mounting point

User Interface
English user interface
User interface available in English language
Norwegian user interface
User interface available in Norwegian language
Czech user interface
User interface available in Czech language
Danish user interface
User interface available in Danishlanguage
Dutch user interface
User interface available in Dutch language
French user interface
User interface available in French language
German user interface
User interface available in German language
Italian user interface
User interface available in Italian language
Japanese user interface
User interface available in language
Korean user interface
User interface available in Korean language
Polish user interface
User interface available in Polish language
Portugese user interface
User interface available in Portugese language
Russian user interface
User interface available in Russian language
Spanish user interface
User interface available in Spanish language
Turkish user interface
User interface available in Turkish language
Ukrainian user interface
User interface available in Ukrainian language
Terminal operation mode
operate with an external device
Screen size (diagonal) 17.8 cm 7 inch diagonal size of the display
Touchscreen
operation by touch screen
Connectivity
Lode interface protocol
Supports communication according to the Lode ergometer protocol
Ergoline P10 interface protocol
Supports communication with Ergoline P10 protocol
Ergoline P4 interface protocol
Supports communication with Ergoline P4 protocol
Schiller interface protocol
Schiller-käyttöliittymäprotokolla
Bosch EKG 506 DS interface protocol
Supports communication with Bosch EKG 506 DS Protokoll
USB connector
connection via USB possible
RS232 out connector
connection via RS232
Dimensions
Product length (cm) 200 cm 78.7 inch length of product in cm
Product width (cm) 100 cm 39.4 inch width of the product in cm
Product height 70 cm 27.6 inch height of product
Product weight 100 kg 220.5 lbs the weight of the product
Power Requirements
100 / 230V AC 50/60 Hz
5,5 / 8,5 A - at 110 V: 500 Watt
V AC 100 - 240 V voltage in Volt
Phases 1 phases
Frequency 50/60 Hz frequency in Herz
Power consumption 160 W power consumption in Watt
Power cord length 250 cm 98.4 inch length of powercord including plugs
Power cord IEC 60320 C13 with CEE 7/7 plug
European power cord and connector standard supplied with product
Standards & Safety
IEC 60601-1:2012 - pending
the product is IEC 60601-1 edition 3.1 compliant (pending)
ISO 13485:2016 compliant
Lode fulfils ISO 13485:2016 requirements
ISO 9001:2015 compliant
Lode fulfills ISO 9001: 2015 requirements
Environmental Conditions
Minimum operational temperature 14 °C minimum temperature at which the device will work within specification
Maximum operational temperature 40 °C maximum temperature at which the device will work within specification
Minimum operational air pressure 80 kPa minimum airpressure as from which the product will be operating within specification
Maximum operational air pressure 106 kPa maximum air pressure as from which the product will be operating within specification
Minimum operational non-condensing humidity 30 % minimum non-condensing humidity at which the product will operate within specification
Maximum operational non-condensing humidity 90 % maximum non-condensing humidity at which the product will operate within specification
Minimum storage & transport temperature -20 °C minimum temperature the product may be stored and transported at
Maximum storage & transport temperature 60 °C maximum temperature the product may be stored or transported at
Minimum air pressure storage & transport 50 kPa minimum air pressure the product may be stored or transported at
Maximum storage & transport air pressure 106 kPa maximum air pressure the product may be stored and transported at
Min. humidity storage & transport 10 % minimum non-condensing humidity that the product can be stored or transport at
Max. humidity storage & transport 95 % max. non-condensing humidity that the product can be stored or transported at
Included parts
PC included for PFM

  a PC with LEM and PFM software is included
Bluetooth dongle

  Bluetooth dongle
Pedal Force Measurement

Rotational measurement resolution2 °Resolution in degrees of measurementPedal Force accuracy1 NMeasurement accuracy for pedal force

*Specifications are subject to change without notice.
